Dry Heat Sterilizer

Dry Heat Sterilizer
Dry Heat Sterilizer
Send Inquiry
Product Code : 06
Brand Name : SWISS
Product Specifications
  • Hole Size
  • AS PER USER REQUIREMENT Millimeter (mm)
  • Finish
  • Other
  • Brake
  • -
  • Type
  • AS PER USER REQUIREMENT
  • Material
  • Steel
  • Wheel Size
  • -
  • Wheel Width
  • AS PER USER REQUIREMENT Millimeter (mm)
  • Top Plate Size
  • AS PER USER REQUIREMENT
  • Hole Spacing
  • AS PER USER REQUIREMENT
  • Load Capacity Range
  • -
Product Description

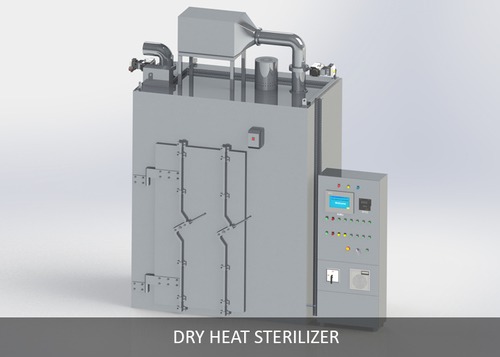

DRY HEAT STERILIZER
SWISS Research and Development efforts Resulted in good Quality Product with Excellent and precise process control as per needs of Customer and their level of Satisfaction SWISS Dry Heat Sterilizer are mainly used for sterilizing and Depyrogenizing glass and metal ware including ampoules, injection bottles, infusion bottles and production Equipments. This Stainless steel Dry Heat Sterilizer use dry heat and are better than the steam sterilizer in the sense that the process does not corrode the Machine. The process completely destructs all micro organisms and does not cause any Environmental Pollution. The Different Cycles of DHS includes Exhaust Cycle, Presterlization, Sterilization, Stabilization; cooling cycles, can with stand a Temperature up to 300°C.

SALIENT FEATURES

  • Complete one Piece Seamless Construction.
  • Hepa Filter can be fitted inside and outside. The temperature variation inside the chamber will not be more than 5°C (Hottest Point & Coldest point).
  • The Trolley designed is such that the loaded trolley can be pulled out easily with Swiss Specially designed high Temperature Heavy Duty Castor wheels. (Thrust Construction)
  • Black particle generation is totally eradicated with the appropriate design of the heater bank, which is externally removable for maintenance saving time and energy.
  • Total Unit is made as per Schedule M & WHO.
  • AISI SS 316 Chamber and Outer AISI SS 304 with complete cGMP Model
  • Double door with special diagonally tightening lock & sealing system with PLC Control Pneumatic Locking Automatically.
  • Special D Type Pharma Food Grade cGMP Silicon Soft Gasket for high temperature air sealing door.
  • AISI SS 316/316L Incolloy tubular Air heater ISO Make
  • Temperature up to 150°C to 300°C
  • Specially designed statically & dynamically balanced blower of suitable capacity is mounted externally for air circulation with Hepa Filter.
  • Hepa Pressure module provided in air suction line.
  • Inlet / Outlet damper valve are pneumatically operated & controlled by PLC Panel.
  • PLC based control panel with 8 to 16 Point PT 100 temperature probe.
  • Special Arrangement of baffles is made for the rapid uniform distribution of air inside the chamber.
  • No black particle generates in the chamber due to install of high temperature Hepa Filter in inner chamber.
  • Self locking safety for doors cant open under pressure.
  • Insulation is made with 12.5cm mineral wool covered by AISI SS 304  Sheet
  • Special air flow technique ensures over pressure throught the cycle for 100% Sterile Integrity.
  • Swiss Care: No Stagnant Point in Internal Surfaces
  • Swiss Design As per ASME and cGMP Standard.
  • Fast Response to (Sterile Product) Demand
Trade Information
  • Payment Terms
  • Others, Cheque
  • Delivery Time
  • 4-6 Week
  • Packaging Details
  • WOODEN BASE
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ALL CERTIFICATES PROVIDED
